Location CONSOLE MA LIGHTING SCANCOMMANDER

131,00 €
TTC

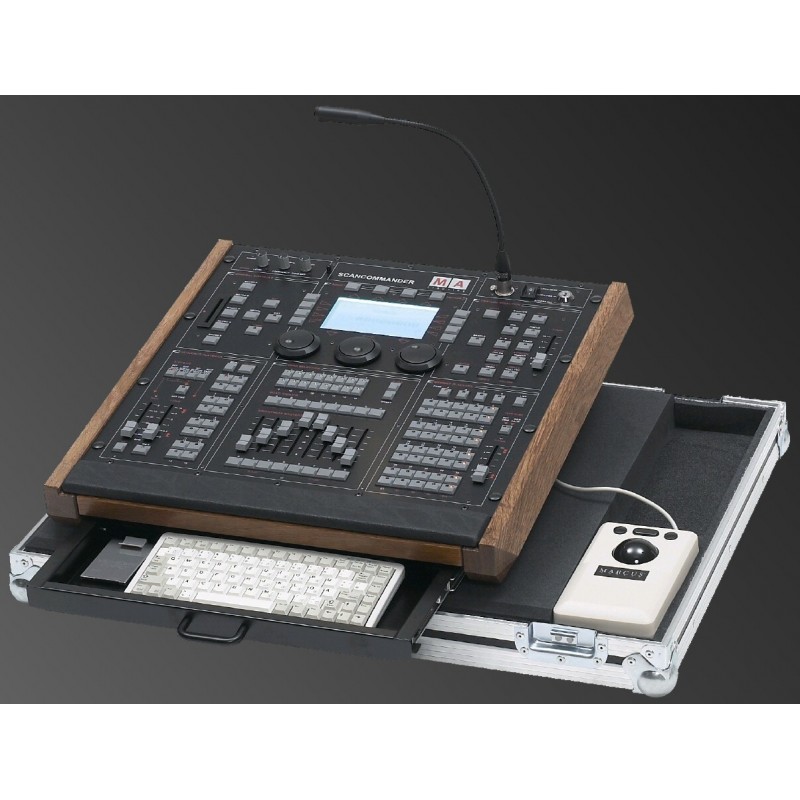

CONSOLE MA LIGHTING SCANCOMMANDER Version TOURPACK (16 Automatiques)
Quantité



+ Assurance de 3%

Capacity:
* Up to 480 channels via DMX 512
* 16 multifunctional fixtures with up to 24 functions each
* Control of 32, 48 or more fixtures with SC-extension units
* 302 labelled pre-sets for all functions
* 104 selective memories and 26 chases controlled by push buttons
* 16 sequences with up to 99 steps and freely programmable times
* 96 extra channels for additional dimmers or colour changers
Ergonomics:
* 40 memory and chaser buttons, partially controlled by 4 pages buttons
* 16 sequence buttons
* 5 freely programmable macro buttons
* 3 X-fader and speed fader for sequence
* Single and group buttons for unit selection
* 8 brightness fader with flash button
* Backlit LCD graphic display with soft-keys and encoder
* Split encoders for coarse and fine adjustment
* Sound input and key switch
* 256 Kbytes cue card for backup of files
* Transfers of files to PC via cue-card-reader (accessories) possible
Common Features:
* Set-up for different lamp types stored internally (free update service)
* Continuous access on single scans or groups
* Selective programming for free combination of memories and effects
* X-fades automatically, timed or manually
* Trigger point for switching effects selectable
* Sequence step trigger by GO-button, sound input or timer
* Single steps with individual wait-, fade-time and trigger point can be combined to form multipart steps
Features of Movement Control:
* 16 Pan/Tilt controls (8 or 16 Bit)
* Control of movement by encoder, trackball or mouse
* 44 pre-set positions to be recalled directly via buttons or by memories
* Positions adaptable to new stage set-up by simple initialization
* Free change between stage orientated calculation and DMX movement
Electronic Data:
* One Motorola 68020 and one 68008 CPU with coprocessor
* Self-contained operating system (reset time less than 1 Sec.)
* 40Hz DMX update rate with 512 channels
* Perfect protection against radio interference (CE-norm)
Synchronization:
* Analogue and DMX 512 input assign able to any playback function
* Sound-to-light effect and remote Go for triggering sequences
* MIDI in, out, thru
* Master slave mode with second unit or SC extension units
* SMPTE synchronization
Inputs and Outputs:
* Periphery: keyboard, Atari compatible mouse or trackball
* Inputs: sound, remote GO, SMPTE, analogue (+10 V), DMX 512, MIDI
* Output: DMX 512, MIDI (master slave and synchronization)
Weights and Dimensions: 483 x 488 x 140 mm / 11 kg
SCANCOMMANDER
